The Objective

A pull request (PR) is a collaborative tool used in version control systems like Git to propose and discuss changes to a codebase. Developers create pull requests to request that their changes be reviewed and merged into the main codebase by other team members.

Visual Studio developer environment lacked all pull request capabilities and the feature was one of the highest request items among the community.

My task was to design a seamless pull request experience within Visual Studio IDE, enabling developers to efficiently review, comment on, fix comments, and merge code changes without leaving their development environment.

I created this image to help communicate the concept of pull requests to stakeholders and users unfamiliar with the term.

User Research

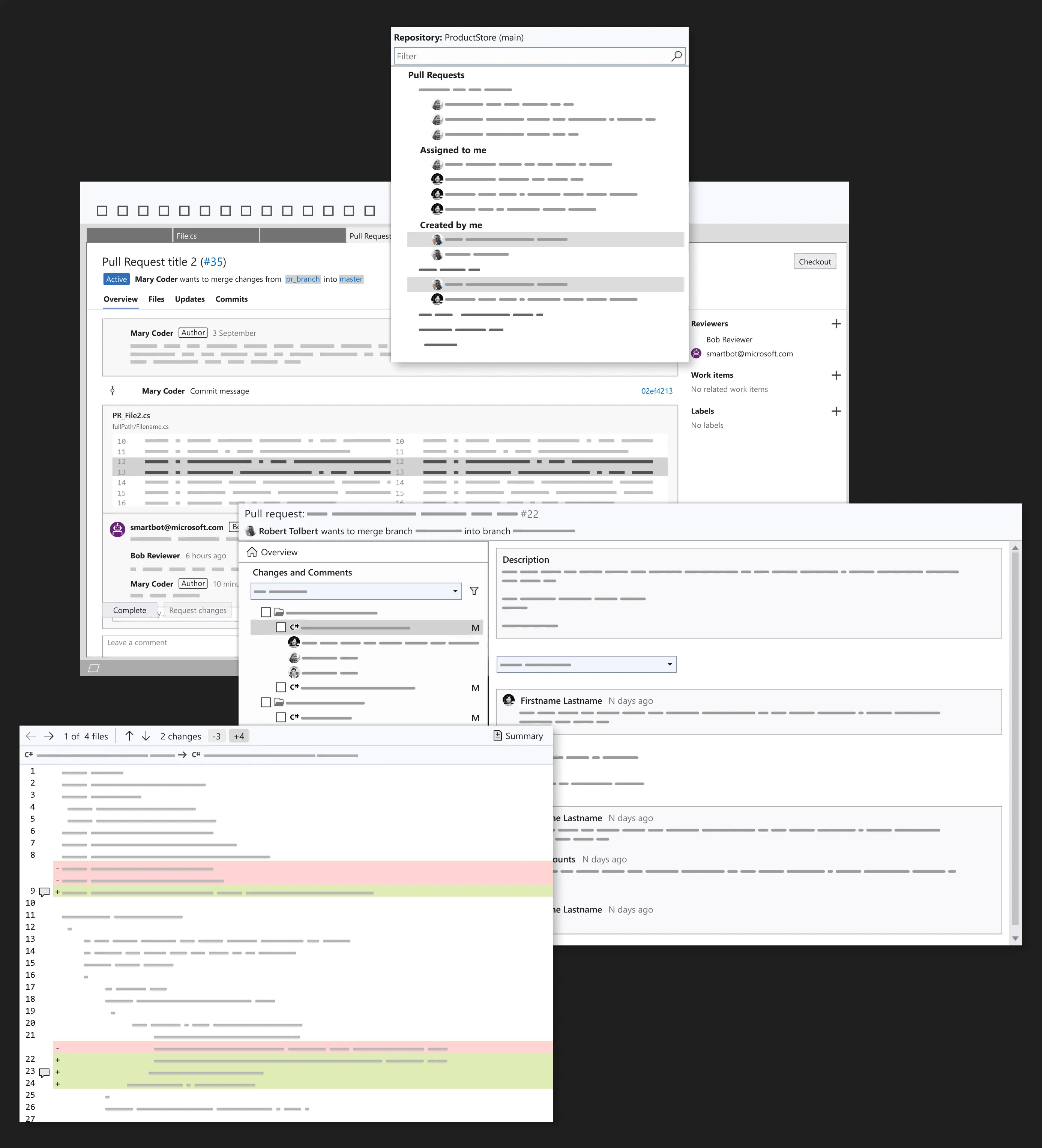

I started with a competitive analysis and benchmarking the core user flows in existing experiences. At the same time I collected customer and problem hypotheses to be validated. I created some lo-fidelity wireframes to support design communications, user research and spark the discussion with our customers.

A set of customer and problem hypotheses to validate with users. — Based on my research and understanding of the problem space, I created a set of hypotheses to validate with users.

My partner programs (kudos to Jessie Houghton and Taysser Gherfal) interviewed developers from various backgrounds and experience levels to understand their pain points, needs, and preferences when it comes to code review and collaboration. We then together synthesized the findings and identified key themes and insights.

Research Findings

Developers expressed a desire for a streamlined workflow that minimizes context switching and enhances productivity during code reviews. It became clear how the user role (author vs reviewer) defines which pull request features are the most relevant in the coding environment.

Some user comments:

"I want to create my pull requests in the IDE right after finishing my code”

"I want to take full advantage of the Visual Studio while reviewing or fixing issues in the PR”

“As an author I want to use the IDE to fix the PR comments.”

“I want to have the PR open on a separate monitor while working on PR changes”"”_

"Notifications during coding mostly just annoy me and break my flow”

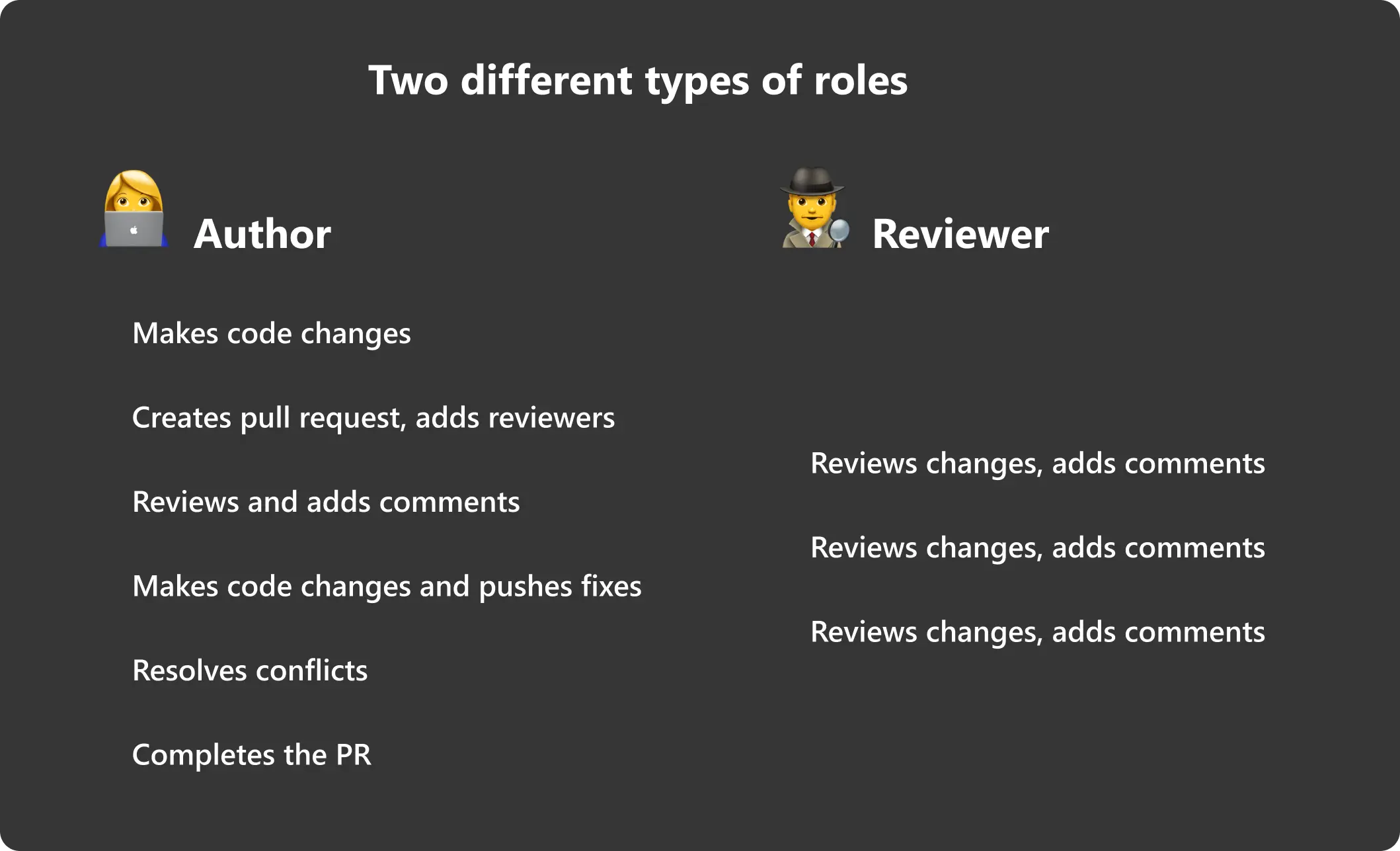

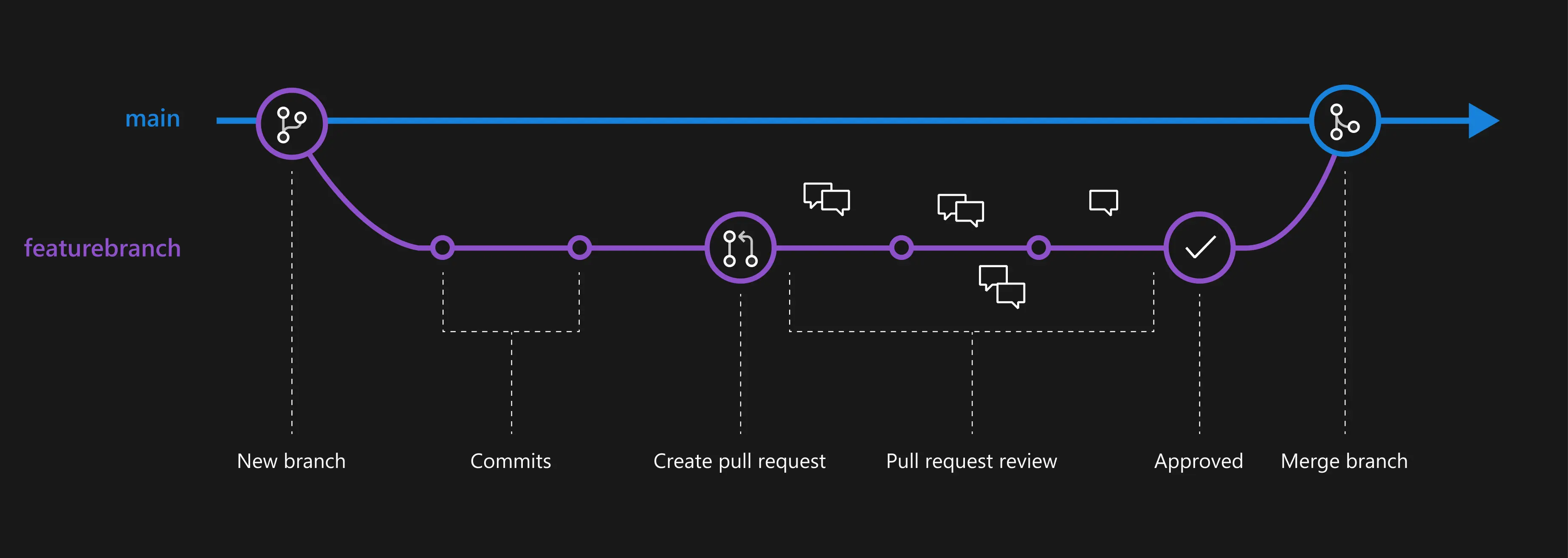

Two main roles and their jobs in pull request flow.

Key UX Challenges

User testing helped answer foundational questions and clarify where to start and which features to prioritize. However, the majority of the UI design work still lay ahead, raising several key UX challenges:

Scope of pull request functionality: Which pull request capabilities are essential, which can be deferred, and what criteria guide those decisions?

MVP vs. North Star vision: What does the MVP design look like compared to the North Star experience, and how can the product evolve smoothly from one to the other?

Ecosystem consistency: How can the design align with existing GitHub and Azure DevOps pull request experiences—across iconography, terminology, and UI patterns—while still feeling native?

Cross-product coherence: What does a coherent design look like across two different products—Visual Studio (Windows) and Visual Studio Code—and where should the experiences intentionally diverge?

Layout and screen real estate: Which layout options best support core user flows, maximize screen space for efficient code review, and integrate cleanly with the existing version control UI?

Design Iterations

I created multiple design iterations to explore different approaches. Each iteration focused on addressing specific pain points identified during user research and concept development. I gathered feedback from internal and external users and stakeholders to refine the designs and ensure they met the needs of developers. I also validated the designs with the engineering team for further ideation, transparency, buy in, and to ensure implementation feasibility.

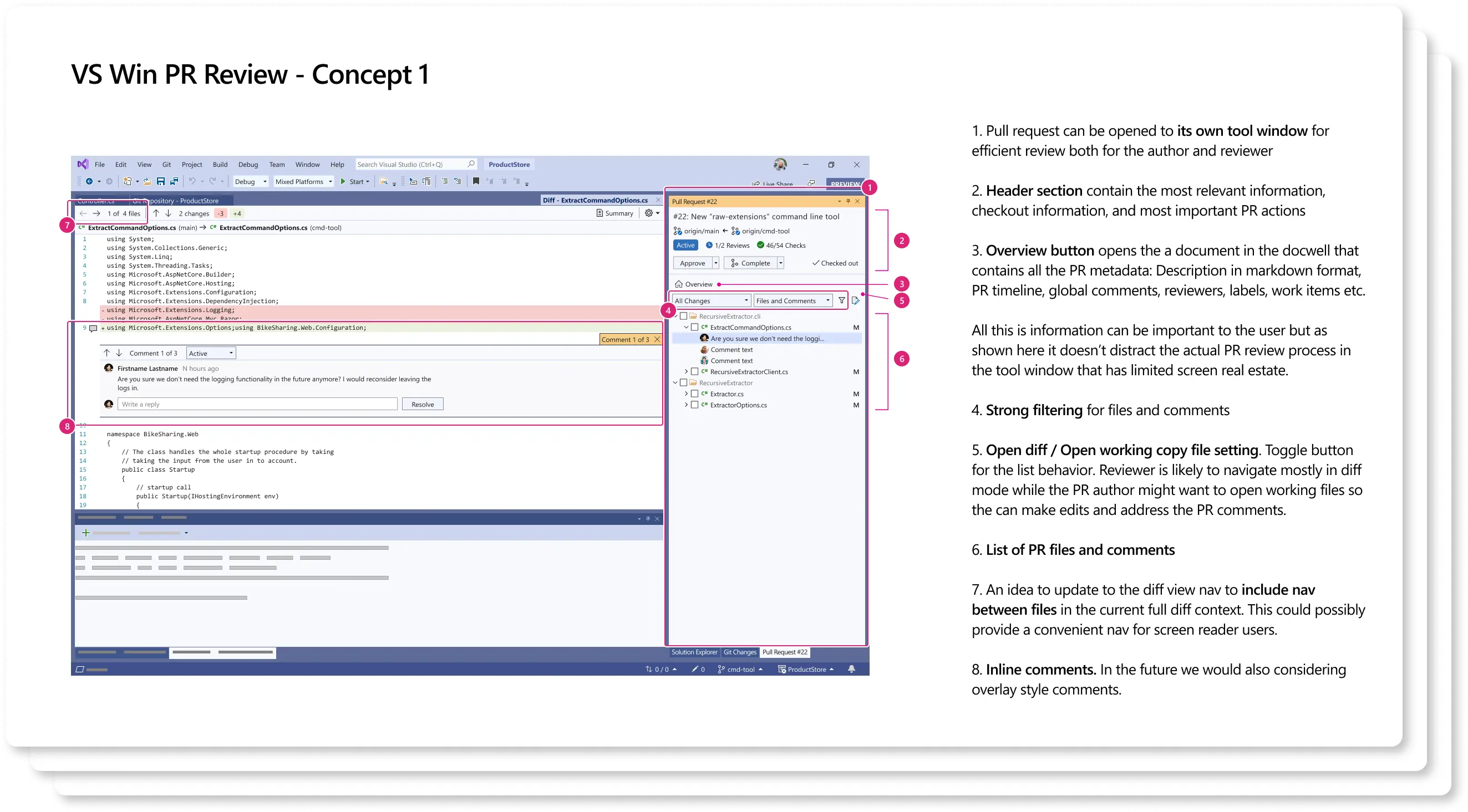

I started narrowing down the design options into 2-3 polished concepts.

There were many design details that needed to be figured out along the way:

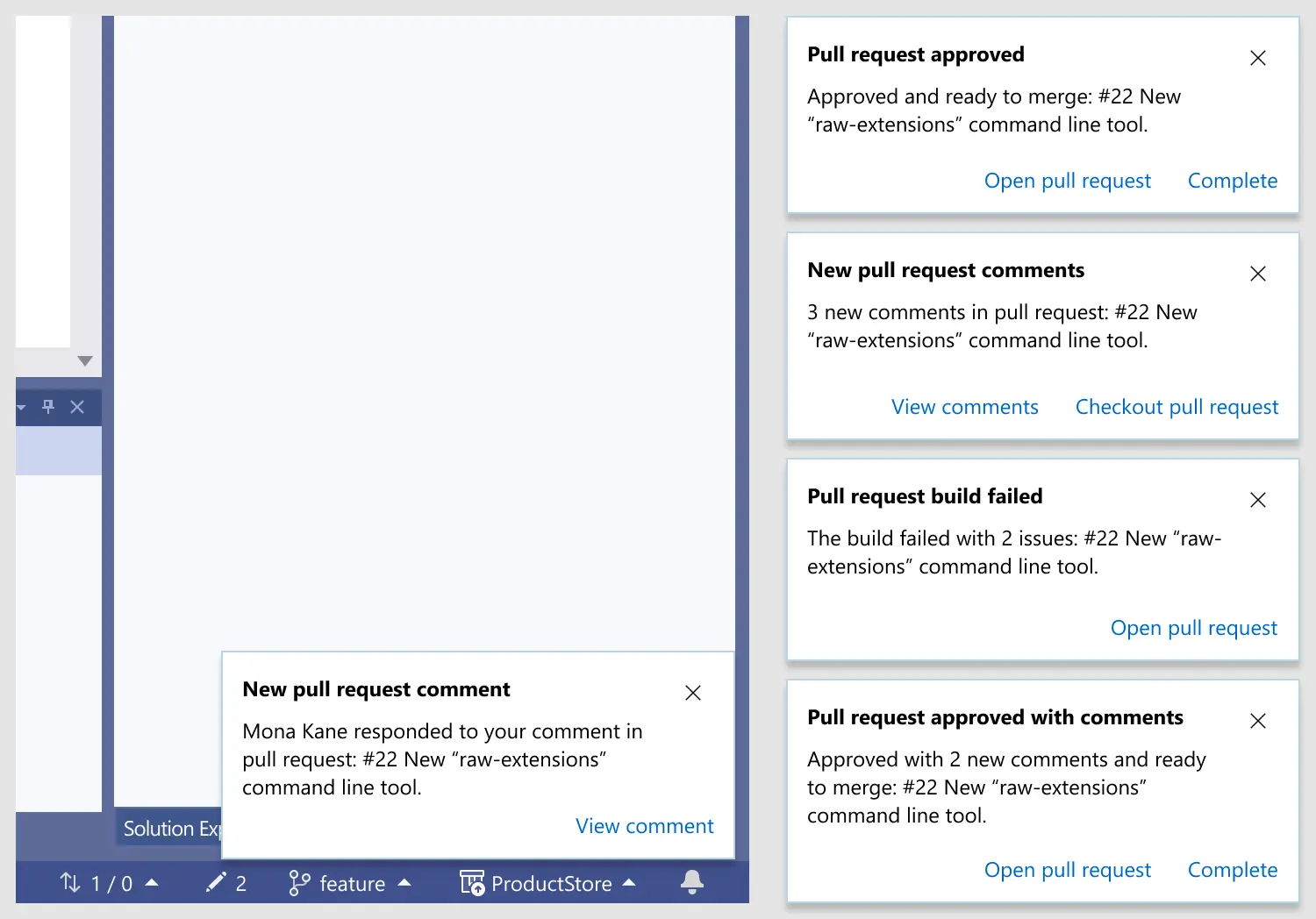

Toast notifications providing contextual information during coding flow. — Toast notifications could to provide status information and contextual quick actions.

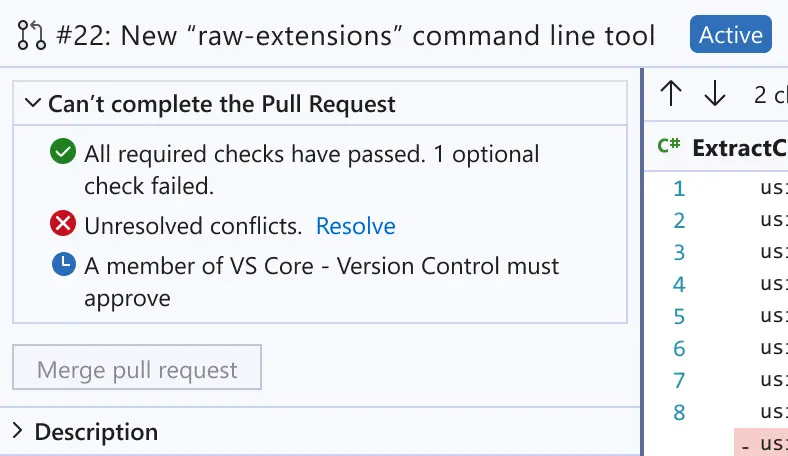

Top section of the details panel showing overall PR status and key information. — Top section of the details panel could provide overall PR status and key information that is easily accessible.

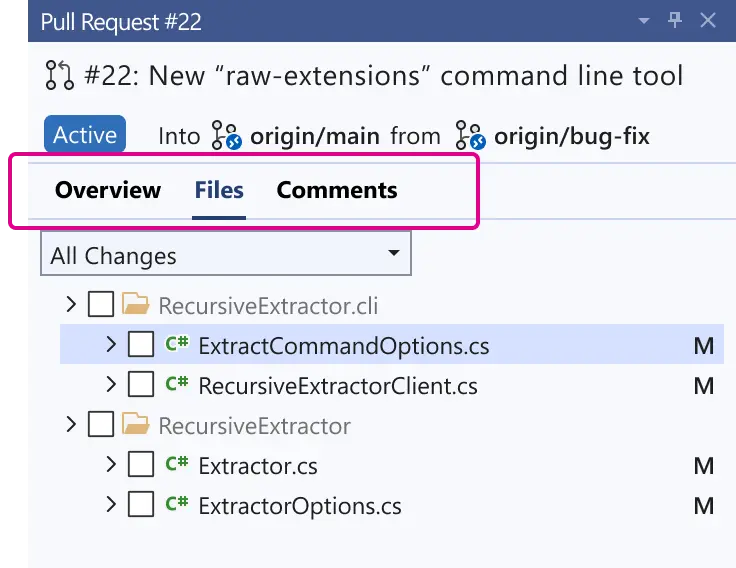

Tabbed navigation to switch between different PR views. — Tabbed navigation to switch between different PR views was considered.

Infobar notifications providing non-intrusive information and quick actions. — Infobar notifications to provide non-intrusive information and quick actions.

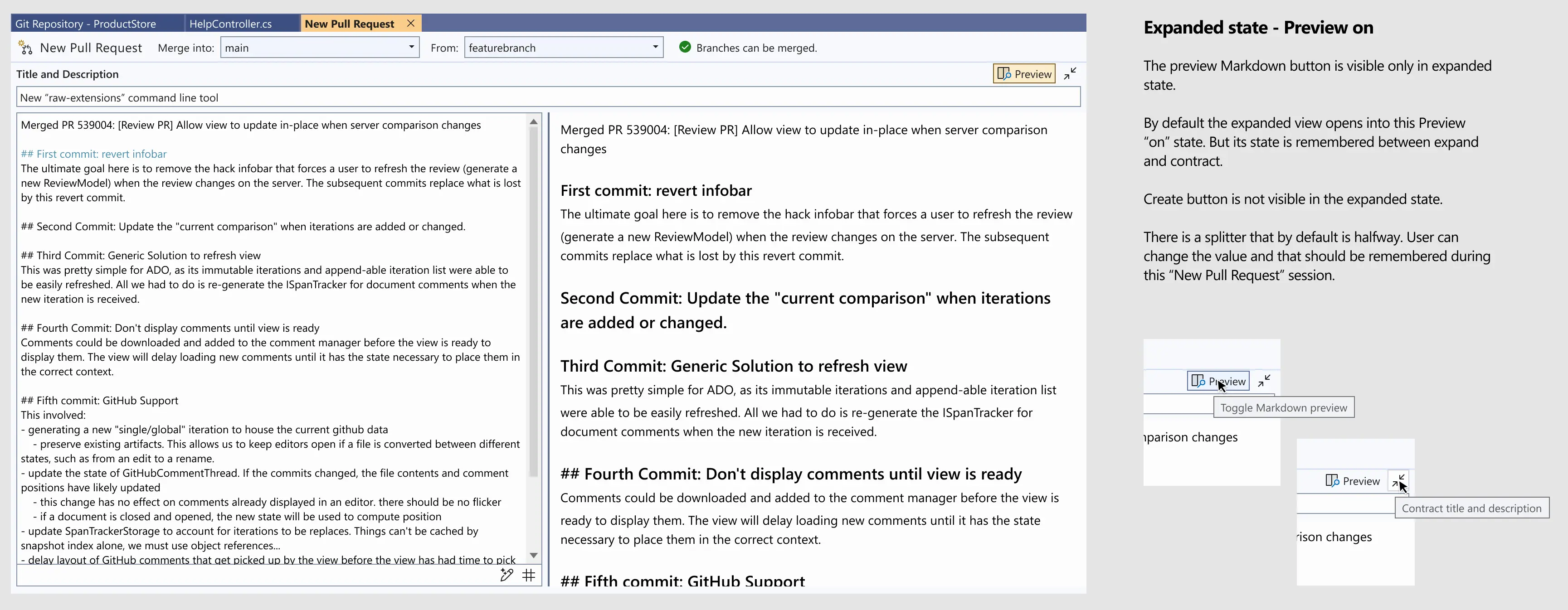

Ability to maximize the pull request details panel and Markdown preview are important when writing more complex descriptions.

Final Design

The final Northstar design focused especially on improving the pull request authors efficiency and powering them with tools that reduce context switching and make flows as seamless as possible. Here some high-level screenshots from the final design documentation giving and idea of top-level architecture:

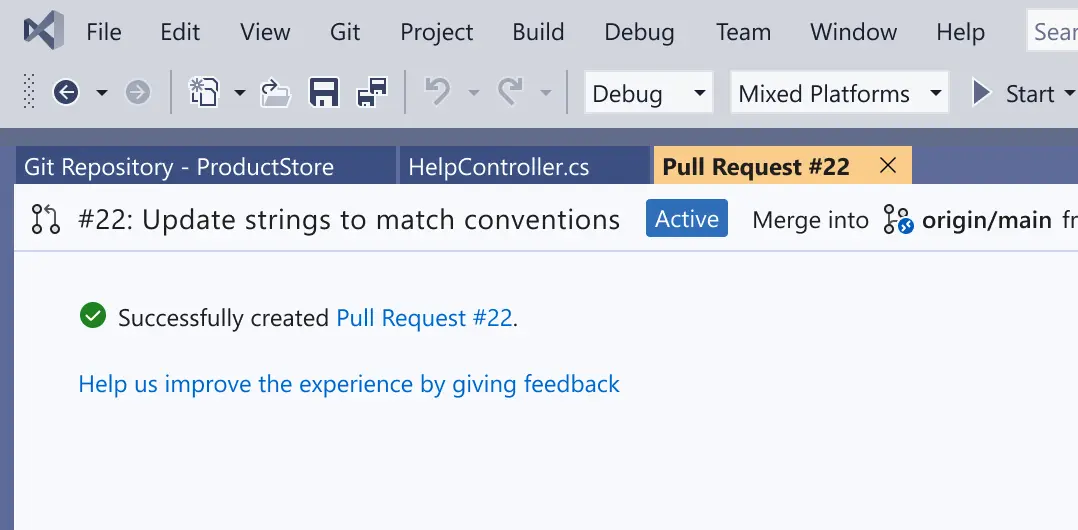

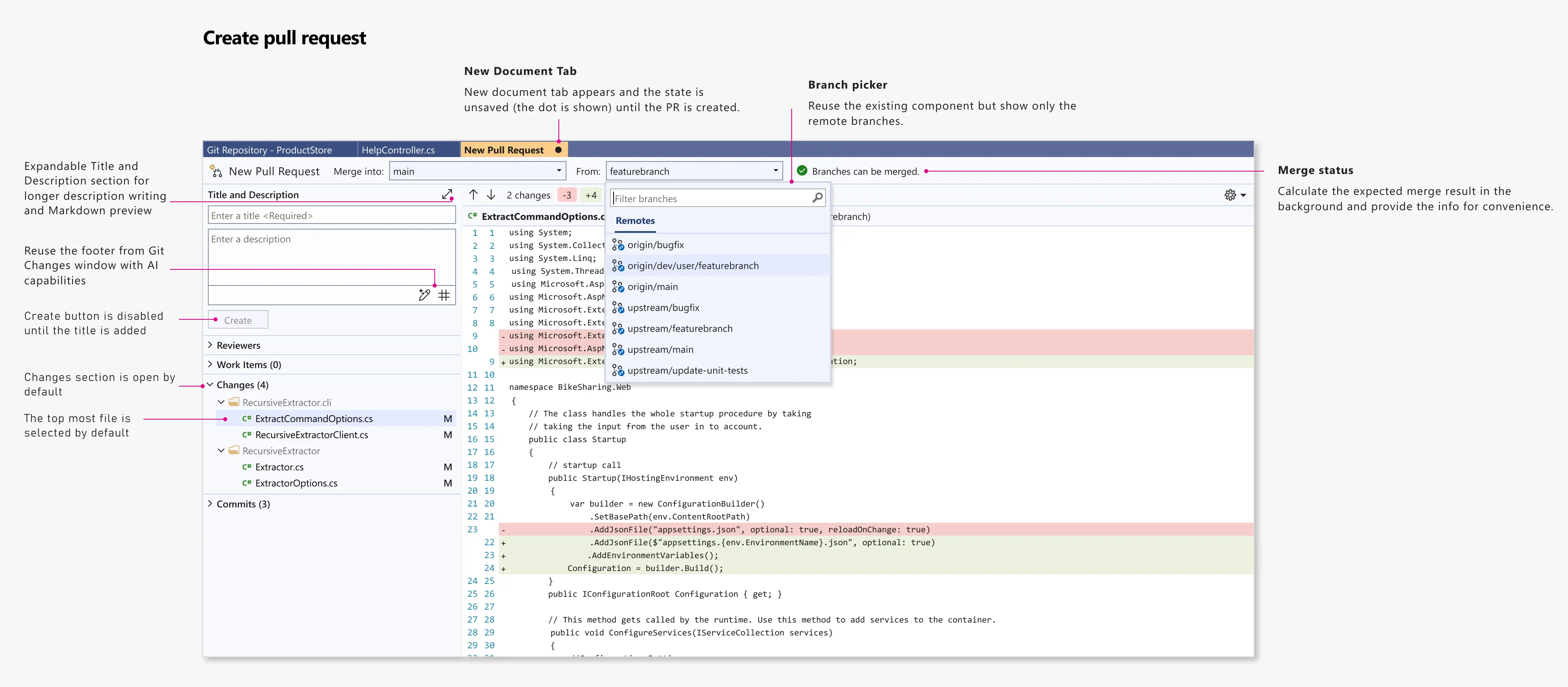

Create pull request layout UI for contextual pull request creation.

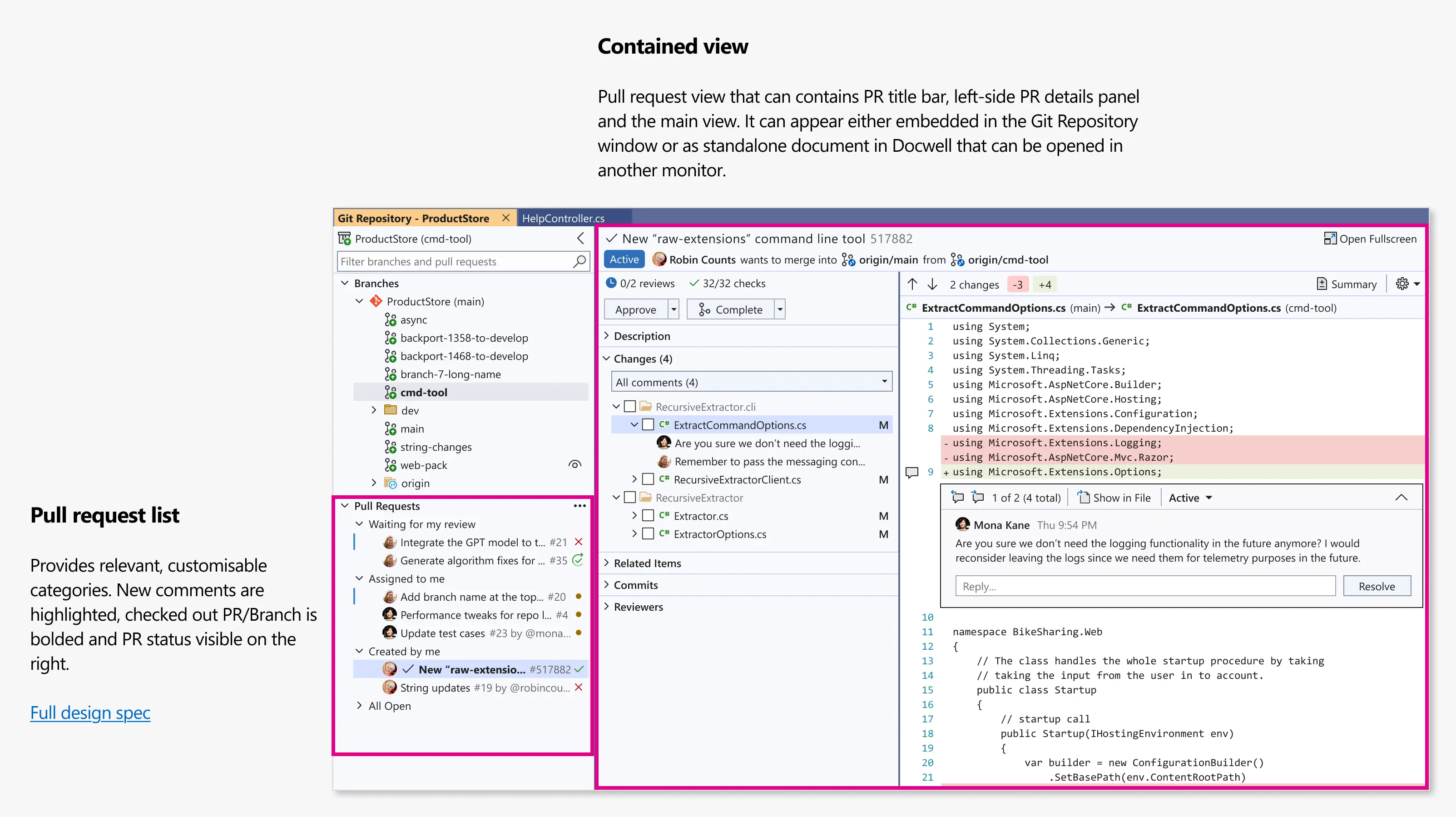

Contained layout for code review and quick pull request scans.

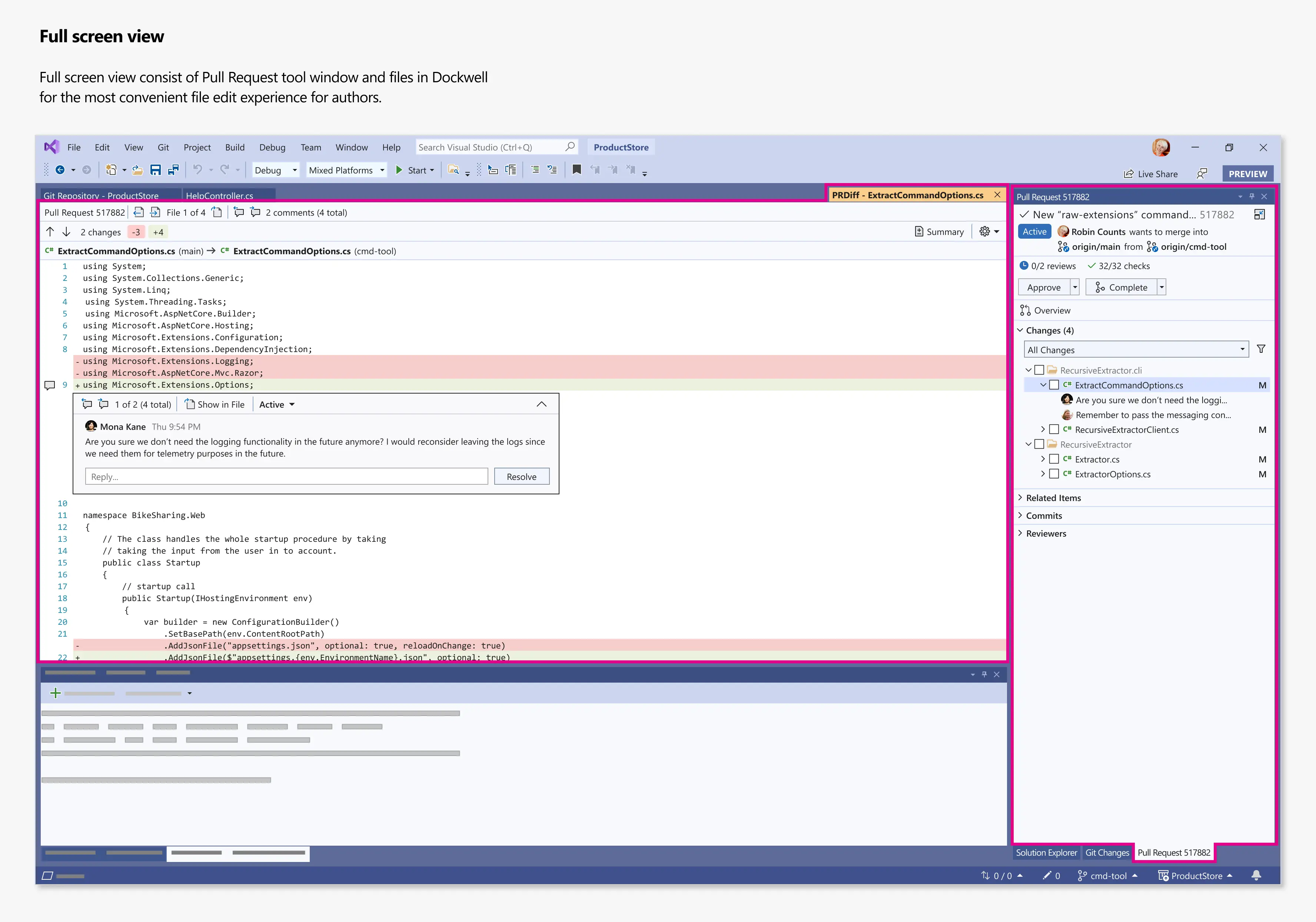

Full screen layout for efficient code fixes and full language server support.

The feature set was designed with scalability in mind, enabling a phased rollout from MVP to a more advanced experience without rework. Early releases focused on core pull request author workflows, while subsequent iterations introduced advanced features informed by user feedback and prioritization.
